Home > products > PCTFE Rod > Molded Extruded PCTFE Polychlorotrifluoroethylene Plastic Rod Bar Diameter 20-160mm

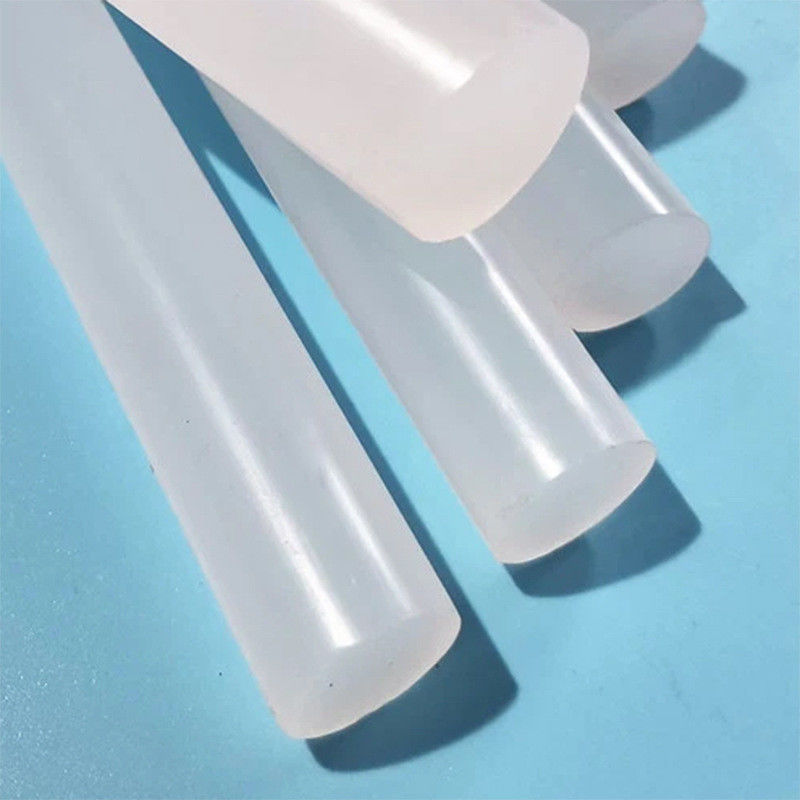

Molded Extruded PCTFE Polychlorotrifluoroethylene Plastic Rod Bar Diameter 20-160mm

Product Details

Place of Origin: Chongqing, China

Brand Name: NIUBO

Model Number: 619-H-1

Payment & Shipping Terms

Minimum Order Quantity: 10 kilograms

Price: $23.00/kilograms 10-49 kilograms

Packaging Details: The product is packed in carton.

Supply Ability: 50000 Piece/Pieces per Week

Get Best Price
Highlight:

Molded Extruded PCTFE Rod

,

160mm PCTFE Rod

Product Name:
White Translucent Kel F PCTFE Sheet
Material:
PCTFE, PCTFE
Thickness:
2mm To 50mm, 2mm To 50mm
Tensile Strength:
40MPa
Processing Service:
Cutting
Color:
White
Density:
2.1~2.2g/cm3
Long Working Temperature::
-200-150C Degree
Purpose Level:
Industrial Grade
Brand:
NIUBO
Port:
Shenzhen
Product Name:
White Translucent Kel F PCTFE Sheet
Material:
PCTFE, PCTFE
Thickness:
2mm To 50mm, 2mm To 50mm
Tensile Strength:
40MPa
Processing Service:
Cutting
Color:
White
Density:
2.1~2.2g/cm3
Long Working Temperature::
-200-150C Degree
Purpose Level:
Industrial Grade
Brand:
NIUBO
Port:
Shenzhen
Molded Extruded PCTFE Polychlorotrifluoroethylene Plastic Rod Bar Diameter 20-160mm

There are two kinds of PTFE rods to offer,One is manufactured by paste

extruding method in the diameter from 4 to 9mm and the other is made by ram ertuding method is the method is the diameter from 10 to 50mm; rods over the diameter 50mm are manutactured by moulding.

PTFE is the most chemical-resistant of all known plastics. It does not age.

PTFE has a wide range of practicalble temperature from -180° C to +260C and a wax -like surface to which anything hardly hardly sticks.

PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical proper-ties of all plastics.



Name
Diameter
Length

Moulded rod
φ5-φ20
200
φ25-φ70
200-500
φ80-φ150
200
Moulded tube
φ40-φ300
100-200
PCTFE rod products are compatible to corresponding standard
Name
Thickness
Width
Length
Molded sheet
1-40
100-500
100-500
PCTFE sheet products are compatible to corresponding industry standard


PCTFE has a low melt viscosity which permits extrusion, compression moulding and injection moulding. Typical uses include valve seats, seals, sight glasses and windows and many cryogenic applications.



We can design and manufacture your product, part or component in PCTFE. Whether developing a new part from scratch or innovating to provide a new solution for a failing component, our engineers can design and manufacture products in PCTFE that will meet and exceed performance requirements.

Molded Extruded PCTFE Polychlorotrifluoroethylene Plastic Rod Bar Diameter 20-160mm 0

application:



1. Contact with highly corrosive media, sealing and gasket materials of high-pressure systems, transparent materials for observation windows, etc.

2. Electrical insulation materials, etc.

3. Low molecular weight PCTFE is used as sealing fluid, grease for highly corrosive media and balancing fluid for navigation gyros.



PCTFE rod offers outstanding chemical resistance and cold flow resistance, making it ideal for demanding applications.
Size: 1.375 in diameter x 6 ft length
Features:

  • Chemical resistance: Suitable for aggressive chemical exposure.
  • Cold flow resistance: Retains dimensional stability in cryogenic conditions.
  • FDA compliance: Safe for food and pharmaceutical use.

Typical Applications: Used in seals, gaskets, and cryogenic valve components in food and aerospace industries.



Density 2.1 g/cm³
Tensile Strength 40 MPa
Flexural Modulus 800 MPa
Melting Point 215°C
Coefficient of Thermal Expansion 7.5 x 10^(-5) cm/cm/°C
Low Friction Coefficient
Electrical Insulation





Molded Extruded PCTFE Polychlorotrifluoroethylene Plastic Rod Bar Diameter 20-160mm 1Molded Extruded PCTFE Polychlorotrifluoroethylene Plastic Rod Bar Diameter 20-160mm 2

PCTFE IS WIDELY USED FOR:

  • Cryogenic and chemical processing components
  • Seals and gaskets
  • Aerospace valve seats, pump parts, impellers,
    diaphragms, and plugs
  • Laboratory instruments
  • Nuclear service/high radiation exposure
  • Liquid oxygen and liquid nitrogen valve linings

PERFORMANCE CHARACTERISTICS:

  • Dimensionally stable, rigid, and resistant
    to cold flow
  • Very low gas permeation and outgassing
  • Near zero moisture absorption
  • Excellent chemical resistance
Packaging & Shipping

Raw Material Package Storage & Transportation

Net weight 200kg metal barrel. Keep away from fire and avoid direct sunshine; Provide dry and well-Ventilated place. Avoid exposure to rain and sunlight; Dangerous goods under transport regulations.
