Precision Engineered PCTFE Tubing Reliable Fluid Transfer Solutions For Critical Systems

Product Details

Place of Origin: Chongqing, China

Brand Name: NIUBO

Model Number: 619-H-1

Payment & Shipping Terms

Minimum Order Quantity: 10 kilograms

Price: $23.00/kilograms 10-49 kilograms

Packaging Details: The product is packed in carton.

Supply Ability: 50000 Piece/Pieces per Week

Get Best Price
Highlight:

Reliable Fluid Transfer PCTFE Tubing

,

Critical Systems PCTFE Tubing

,

Precision Engineered PCTFE Tubing

Product Name:
White Translucent Kel F PCTFE Sheet
Material:
PCTFE, PCTFE
Thickness:
2mm To 50mm, 2mm To 50mm
Tensile Strength:
40MPa
Processing Service:
Cutting
Color:
White
Density:
2.1~2.2g/cm3
Long Working Temperature::
-200-150C Degree
Purpose Level:
Industrial Grade
Brand:
NIUBO
Port:
Shenzhen
Product Name:
White Translucent Kel F PCTFE Sheet
Material:
PCTFE, PCTFE
Thickness:
2mm To 50mm, 2mm To 50mm
Tensile Strength:
40MPa
Processing Service:
Cutting
Color:
White
Density:
2.1~2.2g/cm3
Long Working Temperature::
-200-150C Degree
Purpose Level:
Industrial Grade
Brand:
NIUBO
Port:
Shenzhen
Precision Engineered PCTFE Tubing Reliable Fluid Transfer Solutions For Critical Systems

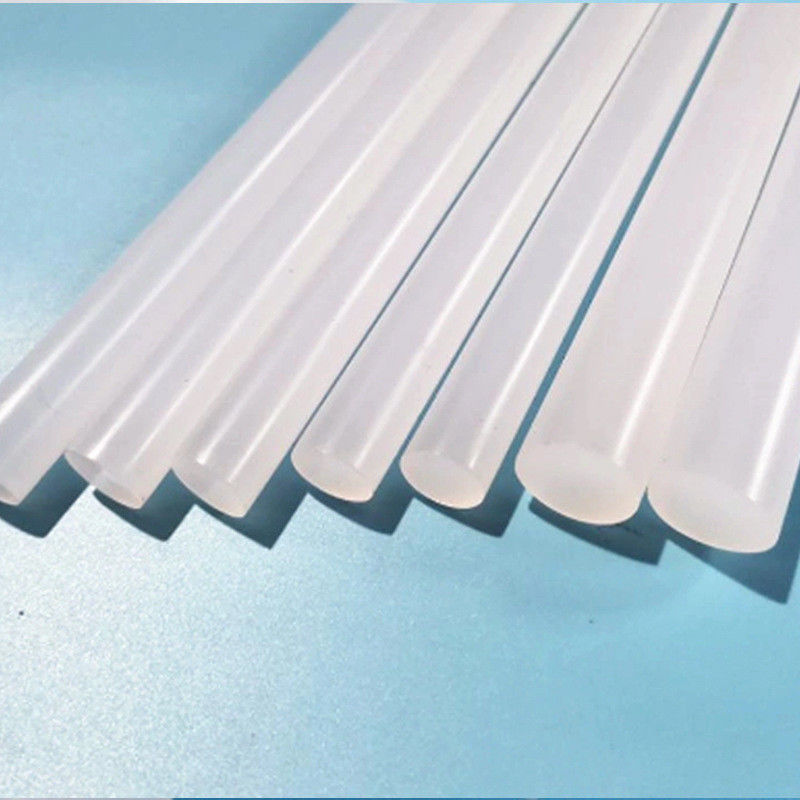

PCTFE originally known as Kel-F and sometimes referred to as Neoflon. PCTFE Rod is an exceptional material with unique physical, mechanical, and electrical properties that make it suitable for numerous applications across various industries.We supply PCTFE rod in various diameters and various lengths to ensure that our customers can find exactly what they need.



Property Test Method Value
Density ASTM D792 2.10 – 2.18
Tensile (At break) 23°C ASTM D638 40 MPa
Tensile (At break) 100°C ASTM D638 10 MPa
Tensile (At break) 150°C ASTM D638 4 MPa
Tensile (At break) -129°C ASTM D638 150 MPa
Tensile (At break) -252°C ASTM D638 200 MPa
Elongation (At break) 23°C ASTM D638 150%
Elongation (At break) 100°C ASTM D638 500 - 800%
Elongation (At break) 150°C ASTM D638 400 - 600%
Elongation (At break) -129°C ASTM D638 9%
Elongation (At break) -252°C ASTM D638 5%
Hardness 23°C Shore D 80
Hardness 50°C Shore D 80
Hardness 100°C Shore D 67
Flammability UL94 V-0

PCTFE has a low melt viscosity which permits extrusion, compression moulding and injection moulding. Typical uses include valve seats, seals, sight glasses and windows and many cryogenic applications.



We can design and manufacture your product, part or component in PCTFE. Whether developing a new part from scratch or innovating to provide a new solution for a failing component, our engineers can design and manufacture products in PCTFE that will meet and exceed performance requirements.

Precision Engineered PCTFE Tubing Reliable Fluid Transfer Solutions For Critical Systems 0

application:



1. Contact with highly corrosive media, sealing and gasket materials of high-pressure systems, transparent materials for observation windows, etc.

2. Electrical insulation materials, etc.

3. Low molecular weight PCTFE is used as sealing fluid, grease for highly corrosive media and balancing fluid for navigation gyros.



PCTFE rod offers outstanding chemical resistance and cold flow resistance, making it ideal for demanding applications.
Size: 1.375 in diameter x 6 ft length
Features:

  • Chemical resistance: Suitable for aggressive chemical exposure.
  • Cold flow resistance: Retains dimensional stability in cryogenic conditions.
  • FDA compliance: Safe for food and pharmaceutical use.

Typical Applications: Used in seals, gaskets, and cryogenic valve components in food and aerospace industries.



Density 2.1 g/cm³
Tensile Strength 40 MPa
Flexural Modulus 800 MPa
Melting Point 215°C
Coefficient of Thermal Expansion 7.5 x 10^(-5) cm/cm/°C
Low Friction Coefficient
Electrical Insulation





Precision Engineered PCTFE Tubing Reliable Fluid Transfer Solutions For Critical Systems 1Precision Engineered PCTFE Tubing Reliable Fluid Transfer Solutions For Critical Systems 2

PCTFE IS WIDELY USED FOR:

  • Cryogenic and chemical processing components
  • Seals and gaskets
  • Aerospace valve seats, pump parts, impellers,
    diaphragms, and plugs
  • Laboratory instruments
  • Nuclear service/high radiation exposure
  • Liquid oxygen and liquid nitrogen valve linings

PERFORMANCE CHARACTERISTICS:

  • Dimensionally stable, rigid, and resistant
    to cold flow
  • Very low gas permeation and outgassing
  • Near zero moisture absorption
  • Excellent chemical resistance
Packaging & Shipping

Raw Material Package Storage & Transportation

Net weight 200kg metal barrel. Keep away from fire and avoid direct sunshine; Provide dry and well-Ventilated place. Avoid exposure to rain and sunlight; Dangerous goods under transport regulations.
