Product Details
Place of Origin: China
Brand Name: NIUBAI
Certification: ISO 9001, ISO 14001
Model Number: NIUBAI
Payment & Shipping Terms
Minimum Order Quantity: 100kg
Price: 2.9-3.5USD
Delivery Time: 5-8 workdays
Payment Terms: T/T, Western Union
Name: |

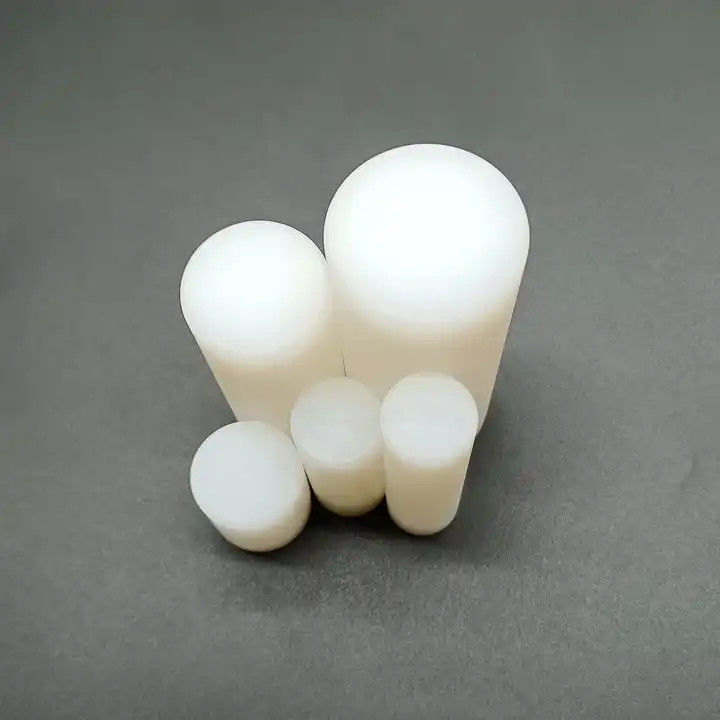

100% Pure Raw Material PE Plastic Rod |
Material: |
00% HDPE Raw Material |
Density: |
0.96g/cm3 |
Diameter: |
φ20mm~φ350mm |
Specification: |
φ 20-φ 350 |
Length: |
Standard Length1m Or Custom |
Certificate: |
ISO9001, Test Report, SGS, ROHS |
Density: |
0.94-0.98 G/cm^3 |
Small Free Sample: |
Available |
OEM & ODM: |
Feasible |
Package Size: |
1.00cm * 1.00cm * 1.00cm |
Name: |
100% Pure Raw Material PE Plastic Rod |
Material: |
00% HDPE Raw Material |
Density: |
0.96g/cm3 |
Diameter: |
φ20mm~φ350mm |
Specification: |
φ 20-φ 350 |
Length: |
Standard Length1m Or Custom |
Certificate: |
ISO9001, Test Report, SGS, ROHS |
Density: |
0.94-0.98 G/cm^3 |
Small Free Sample: |
Available |
OEM & ODM: |
Feasible |
Package Size: |
1.00cm * 1.00cm * 1.00cm |
Product Description
Properties
PE rod is an amazing polyethylene plastic material , which can replace carbon steel , stainless steel , bronze and many other materials .
HDPE offers resistance to almost all acids and bases, detergents and hot water.
Because PE rod has good insulation propety , so it is easy to weld .
PE ROD's working temperature is from -50 ºC to 90 ºC.
HDPE rods is a high crystallinity, non-polar thermoplastic resin, milky white translucent waxy solid, with good chemical stability, can resist most of the acid, alkali, organic solution corrosion, good electrical insulation, easy to weld
Application
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: starshaped wheel, transmission timing bottle screw, bearings, guide rollers, guides, slide blocks, etc
8. Some kind of rubber fender panels and front face of rubber fender.
| project | unit | Test Methods | index | |
General Physical Properties |
molecular weight | X10 | GB184-80ASTMD4020-81 | 50-1080 |
| density | g/cm3 | GB1033-86 | 0.93-0.98 | |
| Volatile matter (moisture) | % | GB2914-82 | ≤0.15 | |
| Izod impact strength | KJ/m2 | GB1843-80 | not broken | |
| impact strength of beam | KJ/m2 | GB1043-86 | 80-130 | |
| Tensile breaking strength | Mpa | GB1040-79 | 25-40 | |
| Tensile elongation at break | % | GB1040-79 | 50-600 | |
| thermal performance | Melting point | ºC | ASTMD 2117 | 136 |
| Vicat softening point | ºC | ASTMD 2117 | 80 | |
| embrittlement temperature | ºC | ASTMD1525 | ≤-70 | |
| Linear expansion coefficient | 10-5/ºC | ASTMD 696 | 0.15 | |
| Thermal deformation temperature 0.45Mpa | ºC | ASTMD 648 | 110 | |
| Electric energy | volume resistivity | ASTMD 257 | 1017~ 1018 | |
| Dielectric strength | KV/mm | ASTMD 149 | 50 | |
| Dielectric constant | 106Hz | ASTMD 150 | 2.30 | |
| Dielectric loss tangent | 106Hz | ASTMD 150 | ≤5×10-4 |
