Product Details
Place of Origin: Guangdong, China
Brand Name: NIUBAI
Model Number: PC sheet
Payment & Shipping Terms
Minimum Order Quantity: 10 square meters
Price: $3.50/square meters 10-499 square meters
Packaging Details: Sheets corner protected with paper corner protection
One pallet covered with plastic protection film
One sheet packed with both sides PE film or kraft paper
Supply Ability: 100000 Piece/Pieces per Week

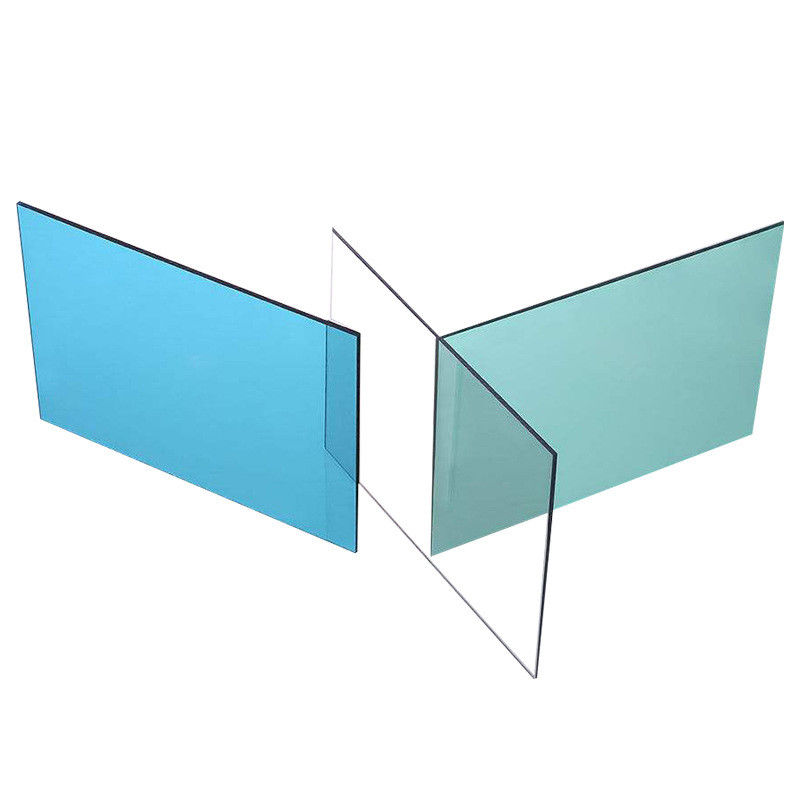

Product Name: |
100% Virgin Materials Polycarbonate Corrugated PC Hollow Sheet |
Material: |
PC, PC, 100% Bayer/Makrolon/Lexan/Sabic |
Thickness: |
Customized, 3mm, 3mm Or Customized Thick |
Size: |
Customized |
Processing Service: |
Cutting, Moulding |
Production Line: |
Polycarbonate Corrugated PC Hollow Sheet |
Dew-Proof: |
The Sheet Can′t Be Easily Dewed. |
Density: |
1.2g/cm3 |
Feature: |
Waterproof, Uv Protection, Heat Resistance |
Quality: |
No Yellowing, No Fade Color For Outdoors |
Surface: |
Uv Coating |
Application: |
Skylight, Box, Roofing, Court |
Product Name: |
100% Virgin Materials Polycarbonate Corrugated PC Hollow Sheet |
Material: |
PC, PC, 100% Bayer/Makrolon/Lexan/Sabic |
Thickness: |
Customized, 3mm, 3mm Or Customized Thick |
Size: |
Customized |
Processing Service: |
Cutting, Moulding |
Production Line: |
Polycarbonate Corrugated PC Hollow Sheet |
Dew-Proof: |
The Sheet Can′t Be Easily Dewed. |
Density: |
1.2g/cm3 |
Feature: |
Waterproof, Uv Protection, Heat Resistance |
Quality: |
No Yellowing, No Fade Color For Outdoors |
Surface: |
Uv Coating |
Application: |
Skylight, Box, Roofing, Court |
| Sample name | PC sheet | Sample appearance | Transparent | |||
| Sample specification | 5mm | Production date | 2023/5/16 | |||
| No | Item | Requirement | Test result | Assessment | Test method | |
| 1 | tensile yield strength,MPA | horizontal | ≥55 | 67.2 | conform | JG/T 347-2012.7.4.1 |
| vertical | ≥55 | 67.7 | conform | JG/T 347-2012.7.4.1 | ||
| 2 | nominal tensile strain at break % | horizontal | ≥60 | 67 | conform | JG/T 347-2012.7.4.1 |
| vertical | ≥60 | 62 | conform | JG/T 347-2012.7.4.1 | ||
| 3 | tensile elastic modulus, MPA | horizontal | ≥2200 | 2.36X 103 | conform | JG/T 347-2012.7.4.1 |
| vertical | ≥2200 | 2.4X 103 | conform | JG/T 347-2012.7.4.1 | ||
| 4 | notched/un-notched charpy impact strength,KJ/m2 | horizontal | ≥6 | 11.8C | conform | JG/T 347-2012.7.4.2 |
| vertical | ≥6 | 10.2C | conform | JG/T 347-2012.7.4.2 | ||
| 5 | dimensional change on heating % | horizontal | ≤5 | 0.615 | conform | JG/T 347-2012.7.4.7 |
| vertical | ≤5 | 3.36 | conform | JG/T 347-2012.7.4.7 | ||
| 6 | thermal expansion coefficient, ºC | horizontal | ≤7.5×10-5 | 6.13×10-5 | conform | JG/T 347-2012.7.4.8 |
| vertical | ≤7.5×10-5 | 6.02×10-5 | conform | JG/T 347-2012.7.4.8 | ||
| 7 | heat distortion temperature,ºC | ≥130 | 134 | conform | JG/T 347-2012.7.4.6 | |
| 8 | light transmittance (5mm), % | / | 87.0 | actual measured value | JG/T 347-2012.7.4.9 | |
Product Advantage:
1. Light Transmission
In the temperature from -40C to 120C, the product will not deform.
4. Light Weight
It is light weight, easy to handle and drill, convenient for construsction and procession, when cutting for installation, it is
not easy to be broken.
